Thermal Brake
You can view comparison charts for the systems in our download section

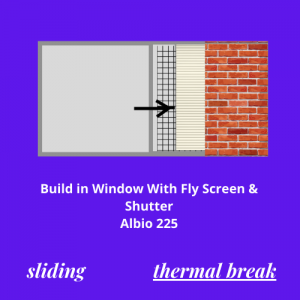

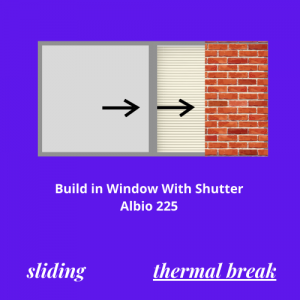

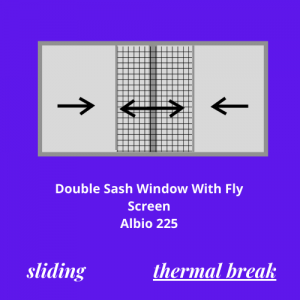

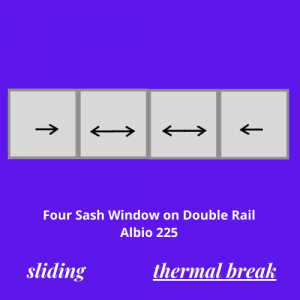

Albio 225
- Description
- Applications
- Characteristics
- System Catalogue
- Typologies
- Certificates
- Photos & Applications

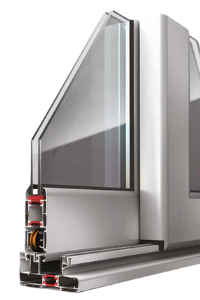

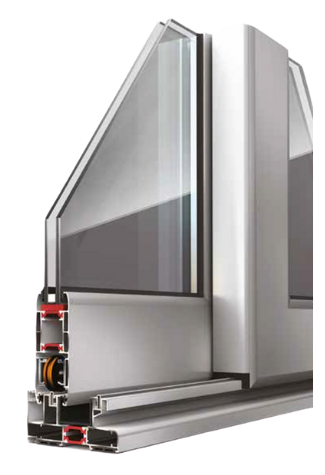

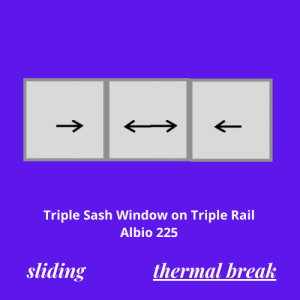

Exalco Albio 225 offers high insulation performance thanks to the thermal cut-off system, even in intense weather conditions. The door and frame profiles are equipped with 24 mm polyamide bars.
With a sash width of 38 mm, the system offers excellent thermal insulation. A unique feature of the system is the possibility of incorporating a stainless steel rail in the frame profile for optimal functionality and durability. Its design includes two different models, flat and oval.
Windows, balcony doors, successive or built-in.
| Aluminum Alloy: | EN AW 6060Τ6, EN 15088:2005 |
|---|---|
| Powder coating: | According to the European standard Qualicoat |
| Anodising: | According to the European standard Qualanod |
| Tolerance: | EN 12020-2 |
| Gaskets: | EPDM |
| Glazing Thickness: | 5-22mm |
| Scroll Guide: | Stainless steel, polyamide |
| Thermal- Break: | 24mm (PA 6.6, 25%GF) |
| Air Permeability: | Specimen dimensions: 1.40m X 2.20m: Class 3 (EN 1026:2000 / EN 12207:2000) |
| Thermal transmittance coefficient: | 3.1 – 5.1 W/(m2K) (EN 10077-2:2003-10) |
| Water Tightness: | Specimen dimensions: 1.40m X 2.20m: Class 4A (EN 1027:2000 / EN 12208:2000) |
| Sash dimensions: | Width 38mm, height 97mm |
| Resistance to wind load: | Specimen dimensions: 1.40m X 2.20m: Class C4 (EN 12211:2000 / EN 12210:2000) |
To download the system catalogue, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
To download the system certificates, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
 |

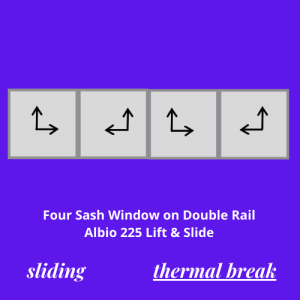

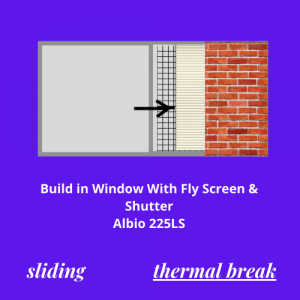

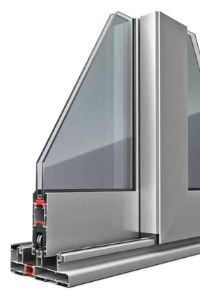

Albio 225 Lift and Slide
- Description
- Applications
- Characteristics
- System Catalogue
- Typologies
- Certificates
- Photos & Applications

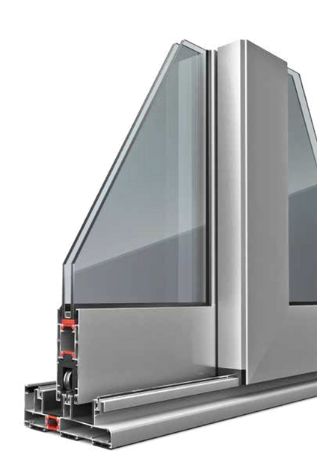

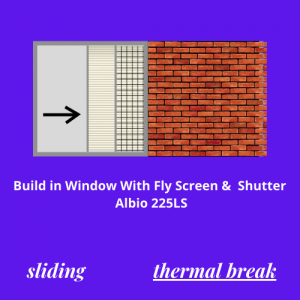

Exalco Albio 225LS is one of Exalco's latest technological achievements in the gliding product group. With a contemporary linear design, the system is ideal for applications with large openings, high strength profiles, and high inertia moment.
The system has excellent thermal insulation properties thanks to 24mm polyamides and special multi-chamber PVC additions. Besides, the system provides firm integrity through EPDM seals and its special lift-slide rail mechanism. These fittings allow the use of large and thick glazing, with a capacity of up to 90 kg of sash weight.
Windows, balcony doors, successive or built-in.
| Aluminum Alloy: | EN AW 6060Τ6, EN 15088:2005 |
|---|---|
| Powder coating: | According to the European standard Qualicoat |
| Anodising: | According to the European standard Qualanod |
| Tolerance: | EN 12020-2 |
| Gaskets: | EPDM |
| Glazing Thickness: | 5-22mm |
| Scroll Guide: | Stainless steel, polyamide |
| Thermal- Break: | 24mm (PA 6.6, 25%GF) |
| Air Permeability: | Specimen Dimensions: 1.40m X 2.20m: Class 3 (EN 1026:2000 / EN 12207:2000) |
| Thermal transmittance coefficient: | 3.1 – 5.1 W/(m2K) (EN 10077-2:2003-10) |
| Water Tightness: | Specimen Dimensions: 1.40m X 2.20m: Class 6A (EN 1027:2000 / EN 12208:2000) |
| Sash dimensions: | Width 38mm, height 97mm |
| Resistance to wind load: | Specimen Dimensions: 1.40m X 2.20m: Class C4 (EN 12211:2000 / EN 12210:2000) |
To download the system catalogue, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
To download the system certificates, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
 |

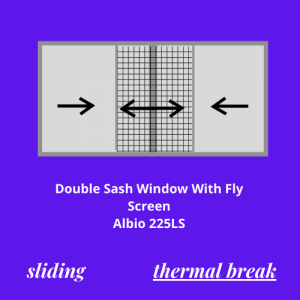

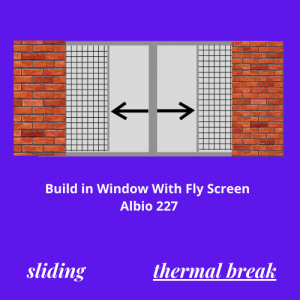

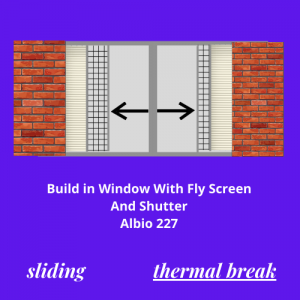

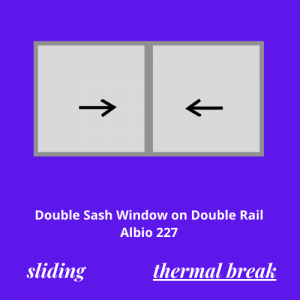

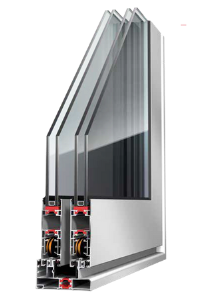

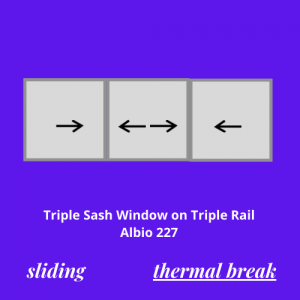

Albio 227
- Description
- Applications
- Characteristics
- System Catalogue
- Typologies
- Certificates
- Photos & Applications

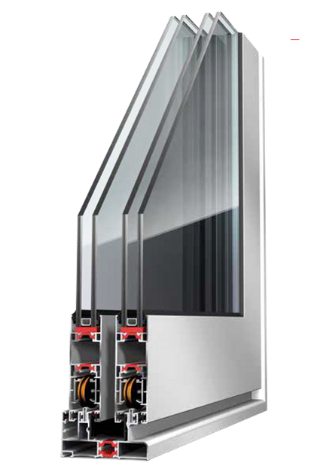

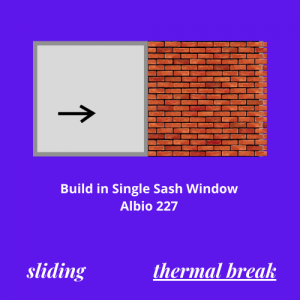

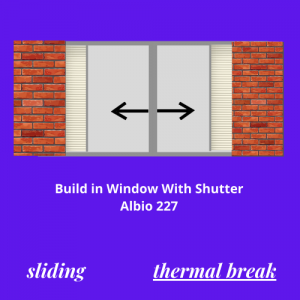

Exalco Albio 227 is a sliding system with thermal break, suitable to replace old sliding windows.
The triple frame (glass - mosquito net - blind) is only 95mm wide and suitable for narrow wall openings. The door and frame profiles are equipped with 10 mm and 18 mm polyamide bars. With a sash width of 31 mm and a sash width of 28 mm, Exalco Albio 227 offers the possibility of making all kinds of sliding windows.
Windows, balcony doors, successive or built-in.
| Aluminum Alloy: | EN AW 6060Τ6, EN 15088:2005 |
|---|---|
| Powder coating: | According to the European standard Qualicoat |
| Anodising: | According to the European standard Qualanod |
| Tolerance: | EN 12020-2 |
| Gaskets: | EPDM |
| Glazing Thickness: | 20mm |
| Scroll Guide: | Stainless steel, polyamide |
| Thermal- Break: | 18mm (PA 6.6, 25%GF) |
| Air Permeability: | Specimen dimensions: 1.40m X 2.20m: Class 3 (EN 1026:2000 / EN 12207:2000) |
| Thermal transmittance coefficient: | 3.7 – 4.8 W/(m2K) (EN 10077-2:2003-10) |
| Water Tightness: | Specimen dimensions: 1.40m X 2.20m: Class 5B (EN 1027:2000 / EN 12208:2000) |
| Sash dimensions: | Width 31mm, height 96mm |
| Resistance to wind load: | Specimen dimensions: 1.40m X 2.20m: Class C1/C2 (EN 12211:2000 / EN 12210:2000) |
To download the system catalogue, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
To download the system certificates, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
 |

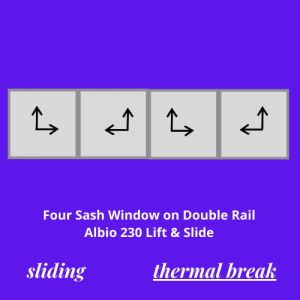

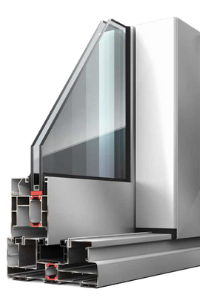

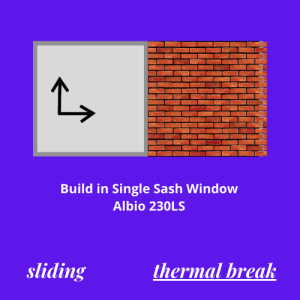

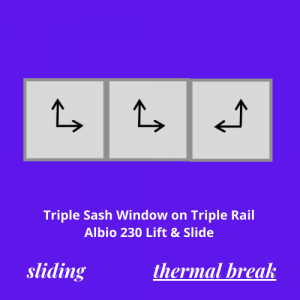

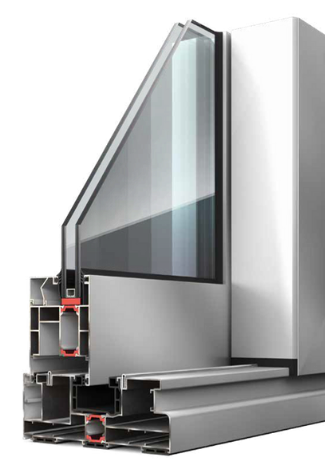

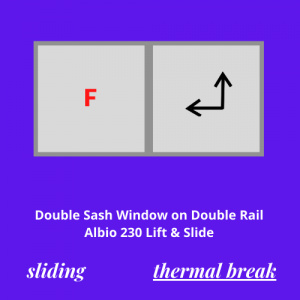

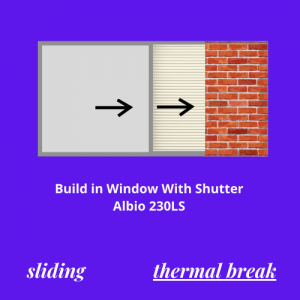

Albio 230 Lift and Slide
- Description
- Applications
- Characteristics
- System Catalogue
- Typologies
- Certificates
- Photos & Applications
Exalco Albio 230 Lift & Slide is one of Exalco's latest technological achievements in the sliding systems product group. Its unique design makes it ideal for wide opening applications, having high resistance profiles, and a high moment of inertia. The system has excellent thermal insulation with 20mm polyamides and PVC profiles. Also, the system offers tightness thanks to its special railing mechanism.
Windows, balcony doors, successive or built-in.
| Aluminum Alloy: | EN AW 6060Τ6, EN 15088:2005 |
|---|---|
| Powder coating: | According to the European standard Qualicoat |
| Anodising: | According to the European standard Qualanod |
| Tolerance: | EN 12020-2 |
| Gaskets: | EPDM |
| Glazing Thickness: | 22-50mm |
| Lift & slide fitting: | GU-934 |
| Scroll Guide: | Stainless steel, polyamide |
| Thermal- Break: | 20-24mm (PA 6.6, 25%GF) |
| Air Permeability: | Specimen Dimensions: 2.10m X 2.20m: Class 3 (EN 1026:2000 / EN 12207:2000) |
| Thermal transmittance coefficient: | 2.4 – 6.2 W/(m2K) (EN 10077-2:2003-10) |
| Water Tightness: | Specimen Dimensions: 2.10m X 2.20m: Class E750 (EN 1027:2000 / EN 12208:2000) |
| Inside frame, Class 8A (EN 1027:2000 / EN 12208:2000) Outside frame | |
| Sash dimensions: | Width 69.3mm, height 95.9mm |
| Resistance to wind load: | Specimen Dimensions: 2.10m X 2.20m: Class C3 (EN 12211:2000 / EN 12210:2000) |
To download the system catalogue, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
To download the system certificates, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
 |

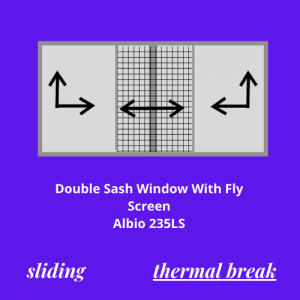

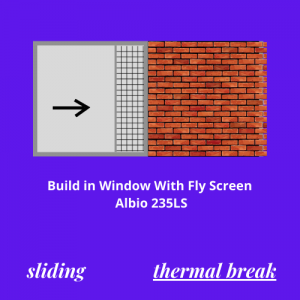

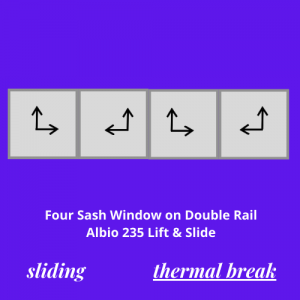

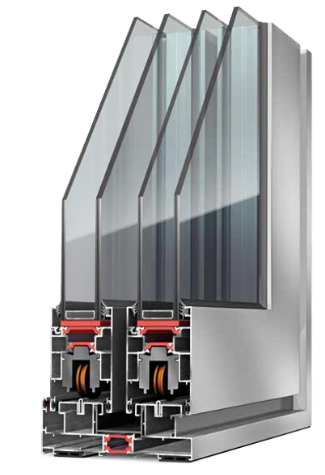

Albio 235 Lift and Slide
- Description
- Applications
- Characteristics
- System Catalogue
- Typologies
- Certificates
- Photos & Applications

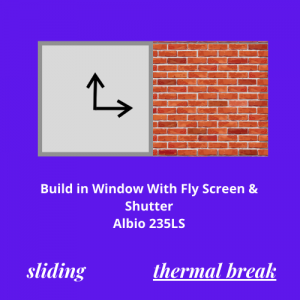

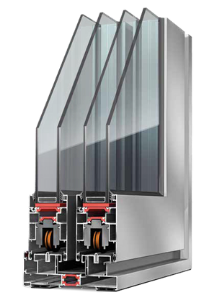

Exalco Albio 235 Lift & Slide is ideal for wide opening applications, having high strength profiles and a high moment of inertia. The system exhibits excellent thermal insulation properties thanks to polyamides from 24 to 34 mm and notable multi-chamber PVC additions. Also, the system provides hermetic integrity thanks to the EPDM gaskets and its unique sliding rail mechanism. These fittings allow the use of large and thick windows, with a capacity of up to 250 kg of sash weight
Windows, balcony doors, successive or built-in.
| Aluminum Alloy: | EN AW 6060Τ6, EN 15088:2005 |
|---|---|
| Powder coating: | According to the European standard Qualicoat |
| Anodising: | According to the European standard Qualanod |
| Tolerance: | EN 12020-2 |
| Gaskets: | EPDM |
| Glazing Thickness: | 24mm & 36mm |
| Lift & slide fitting: | GU-937/957 |
| Scroll Guide: | Stainless steel, polyamide |
| Thermal- Break: | 12mm, 24mm, 34mm (PA 6.6, 25%GF) |
| Air Permeability: | Specimen dimensions: 2.10m X 2.20m: Class 4 (EN 1026:2000 / EN 12207:2000) |
| Thermal transmittance coefficient: | 3.6 – 6.8 W/(m2K) (EN 10077-2:2003-10) |
| Water Tightness: | Specimen dimensions: 2.10m X 2.20m: Class 7A (EN 1027:2000 / EN 12208:2000) |
| Sash dimensions: | Width 56mm, height 84.5mm |
| Resistance to wind load: | Specimen dimensions: 2.10m X 2.20m: Class C4 (EN 12211:2000 / EN 12210:2000) |
To download the system catalogue, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
To download the system certificates, you must be a registered user. Pls Log in or Register.
(scroll to the top of the page).
 |

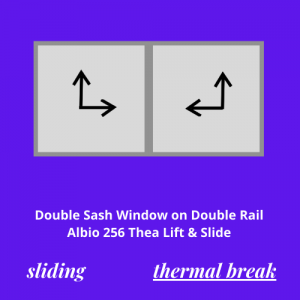

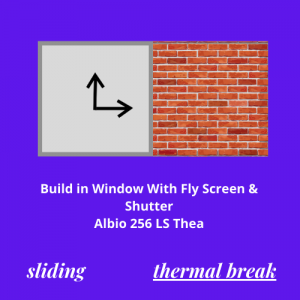

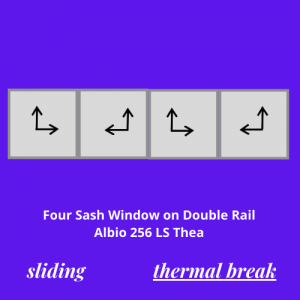

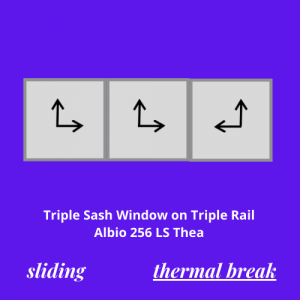

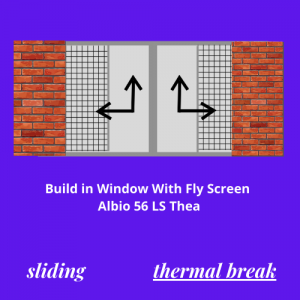

Albio 256 Lift and Slide Thea
- Description
- Applications
- Characteristics
- System Catalogue
- Typologies
- Certificates
- Photos & Applications

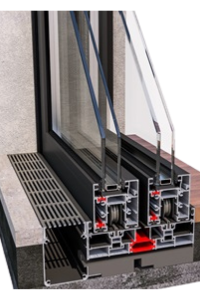

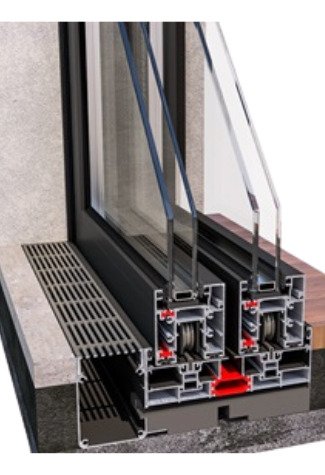

Exalco Albio 256 Thea lift and slide system with thermal breakage
Albio 256 Thea is one of the only minimal lift and slide systems that offers an ideal seal thanks to EPDM seals.
It has a minimal appearance with the integration of the frame into the wall along the system's perimeter, a visible profile of 45.1 mm, and a narrow hook with a visual area of only 42 mm.
It has excellent thermal insulation properties with Uw = 1.15 W / m2K with Ug = 0.6 W / m2K.
A unique water drainage system has been studied that allows an excellent functioning of the system and gives the possibility of draining the water even from inside the system.
Possibility of building all kinds of lifting and sliding systems.
An essential advantage of Albio 256 Thea is that it can be used in existing structures.
Windows, balcony doors, successive or built-in.
| Aluminum Alloy: | |
|---|---|
| Powder coating: | |
| Anodising: | |
| Tolerance: | |
| Gaskets: | |
| Glazing Thickness: | |
| Lift & slide fitting: | |
| Scroll Guide: | |
| Thermal- Break: | |
| Air Permeability: | |
| Thermal transmittance coefficient: | |
| Water Tightness: | |
| Sash dimensions: | |
| Resistance to wind load: |
